VAMP
Condensate pump series
Condensate management has never been easier.
A condensate pump needs to be quick to install, compact and quiet.
Space inside air conditioning units is becoming increasingly limited, while expectations regarding noise emissions in offices, meeting rooms and living spaces continue to rise.
As a Swiss manufacturer of tools and condensate pumps, REFCO simplifies the work of refrigeration and air conditioning technicians by taking on this challenge and developing a new solution.
The condensate pumps of the VAMP series complement the proven COMBI and GOBI II models in the range.
The VAMP condensate pump series
After around three years of development, REFCO presents an entirely new condensate pump series.
It stands out with very simple installation using few components, optical sensor technology and an extremely compact design.
- Learn more
During the development of the VAMP series, we focused on creating a compact, low-noise and easily retrofittable pump using as few components as possible.
The result: a robust, low-maintenance solution that truly shows its strengths in split systems. The power cable adapter enables tool-free integration into systems from other manufacturers and significantly simplifies replacement in the aftermarket.
Four core technologies were developed specifically for this series:
- Optical level sensor – robust, compact, with no moving parts.
- Membrane pump with three compression chambers – quiet operation, low vibration and space-saving design.
- Extendable hose – flexible, watertight and adaptable.
- Compact housing concept – minimal installation space with maximum protection.
Sustainable by design: the housing is made from plant-based material.
Refined, compact design: when developing VAMP-F, we took inspiration from the brand’s characteristic slanted lines of the REFCO logo. Distinctive edges and surfaces enhance the compact appearance and give the pump a futuristic look.The result: with an installation height of just 26 mm, VAMP-F is the smallest condensate pump in the world.
With the VAMP series, REFCO sets new benchmarks in functionality, compactness and user friendliness – developed and manufactured in Switzerland.
The VAMP series consists of five products, each developed for specific applications. The exceptionally small membrane pump acts as the core and delivers outstanding performance.
Fast installation
The condensate pumps of the VAMP series consist of few components and can be installed quickly, easily and without tools.
Very small and compactWith a height of just 26 mm, VAMP ranks among the smallest and most compact products on the market.
Easy connection
For replacing existing condensate pumps from other manufacturers, several optional adapters are available.
Extremely quiet
VAMP adjusts its output to the amount of condensate and therefore operates efficiently and quietly.

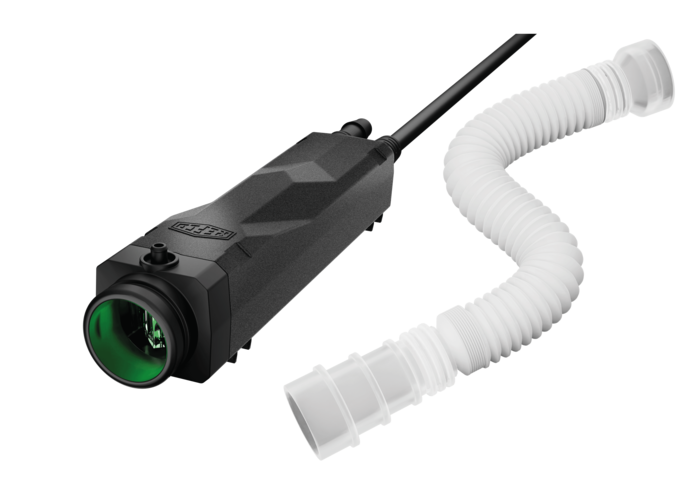

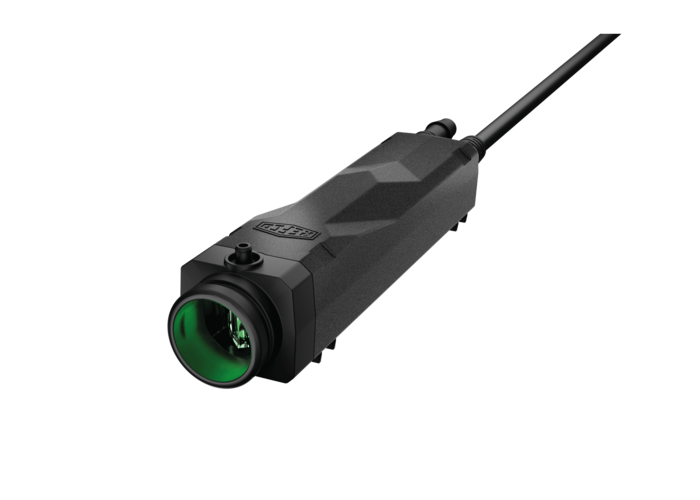

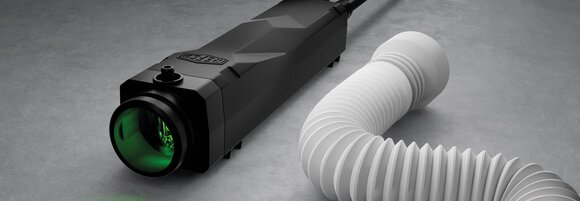

VAMP-F
The smallest condensate pump – for installation inside the indoor unit
With an installation height of just 26 mm, VAMP-F fits even into the tightest spaces inside air conditioning units.
Few components enable quick, tool-free installation.
The integrated optical sensor measures the water level precisely and replaces a float.The integrated optical sensor measures the water level precisely and replaces a float.
VAMP-F details

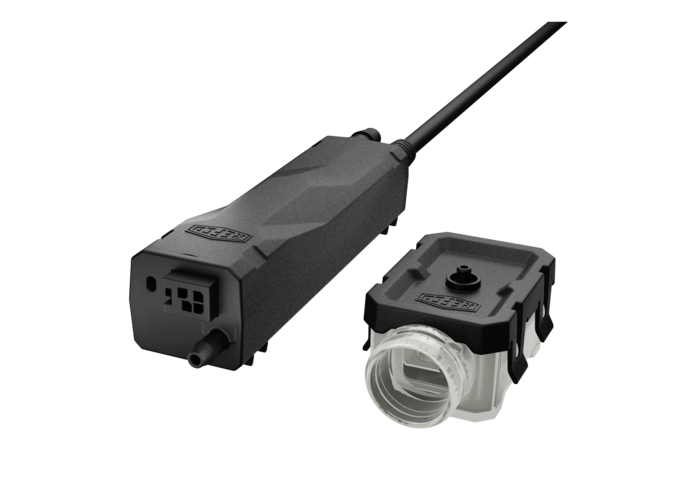

VAMP-X
Maximum flexibility – with external sensor
Thanks to the split design – with pump and external sensor – both components can be positioned freely.
Ideal for installation situations where the pump cannot be placed directly at the point where the condensate collects.

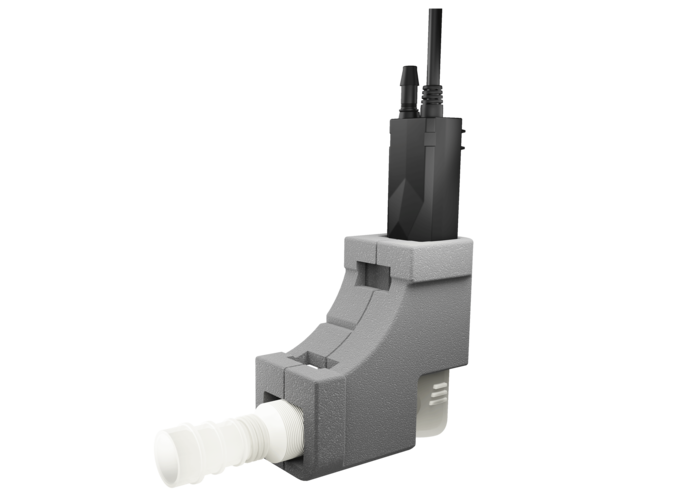

VAMP-C
The replacement solution for corner condensate pumps
Developed specifically for replacing condensate pumps from other manufacturers.
VAMP-C integrates seamlessly into existing corner duct systems. With the optional power cable adapters, no rewiring is required.

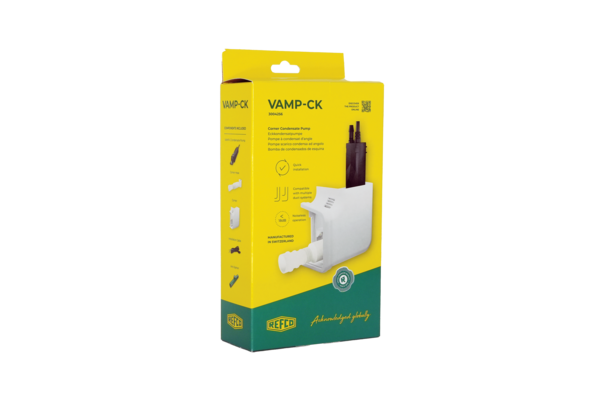

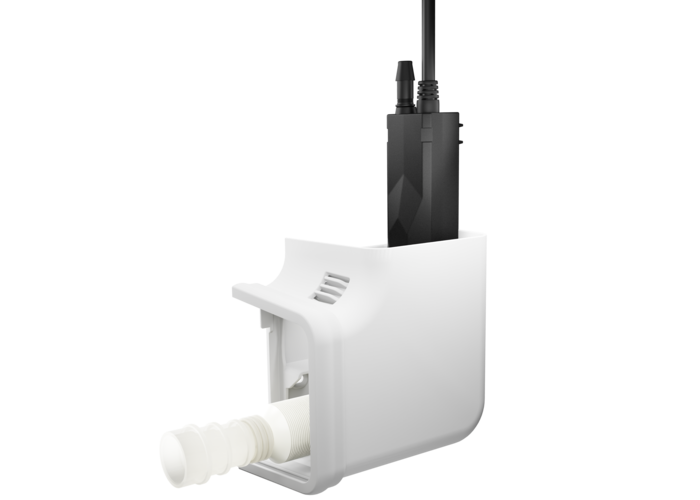

VAMP-CK
Compact corner condensate pump
The corner condensate pump for discreet installation – with very little distance to the indoor unit.
VAMP-CK blends compactly and neatly into any environment and is compatible with standard duct systems.

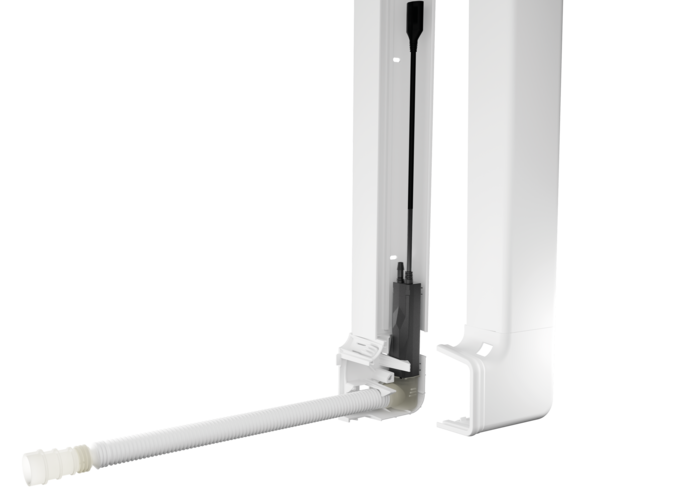

VAMP-CDK
Corner condensate pump complete set
The well-designed system solution for new installations.
The set consisting of condensate pump, corner duct and duct enables a clean, space-saving corner installation with very little distance to the indoor unit.

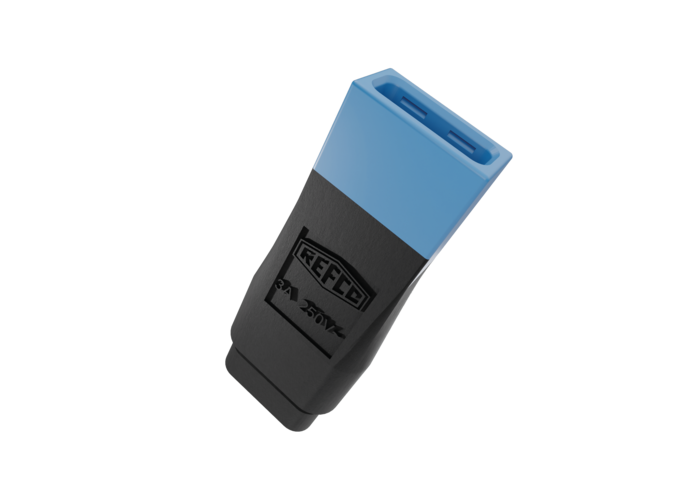

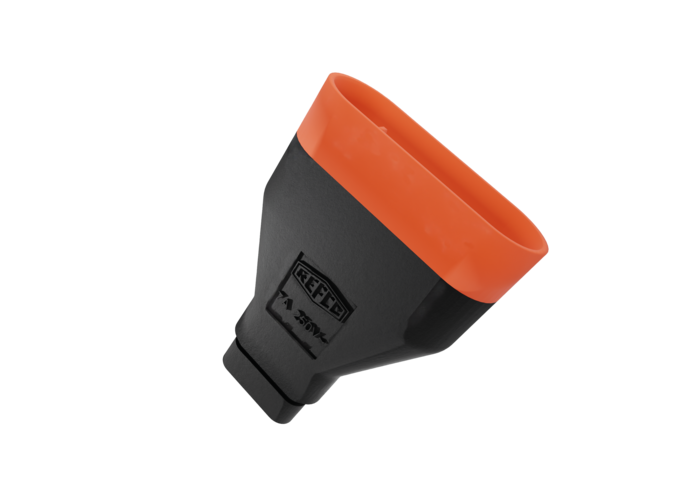

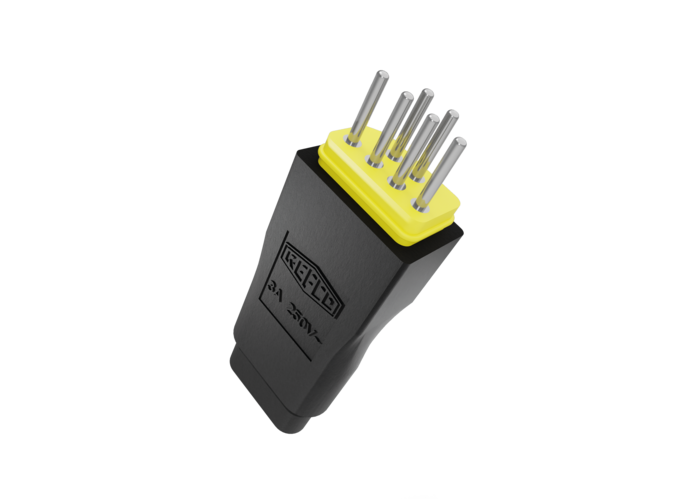

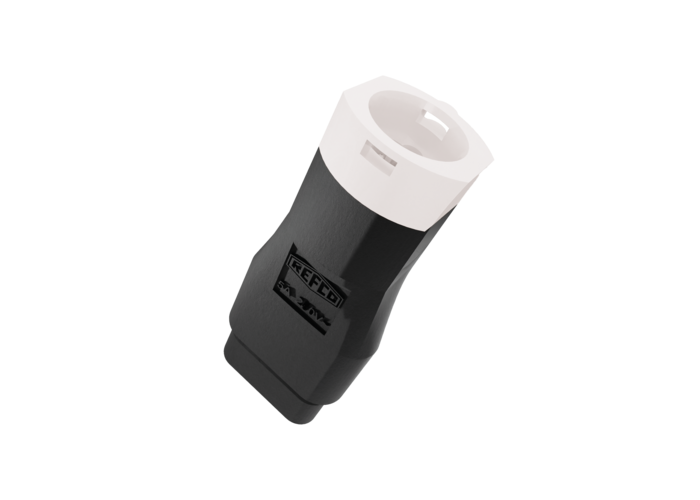

Power cable adapters
Quick and easy connection
The smart adapters enable fast replacement of existing condensate pumps.
Simply connect the installed power cable to one of the optional adapters – the VAMP power supply is ensured without any rewiring.
Condensate management has never been easier.
Technical data
- 22 l/h
- 15 m
- 75 m at 0 m head and 0 m suction
- 18 dB(A)
- Diaphragm type
- 6 mm
- 100 - 240 VAC
- 50Hz/60Hz
- 6 W
- 0.6 W
- II
- Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
- IP44
- 3 °C – 40 °C
- 3 °C – 40 °C
- -20 °C – 70 °C
- Cardboard box
- Pump. Posable hose with filter. Installation cable. Anti-siphon valve. Vent tube. Cable ties. Quick guide.
- Polyamide | FR-4
- black
- IEC 60335-1,
IEC 60335-2-41,
UL 778,
CSA C22.2 #108 - Yes
